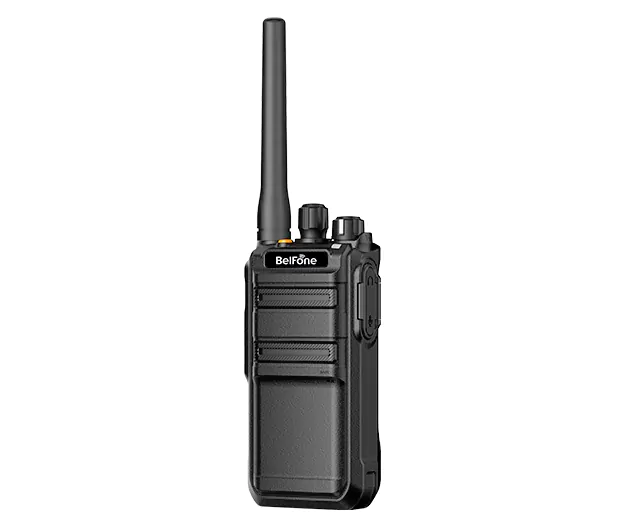

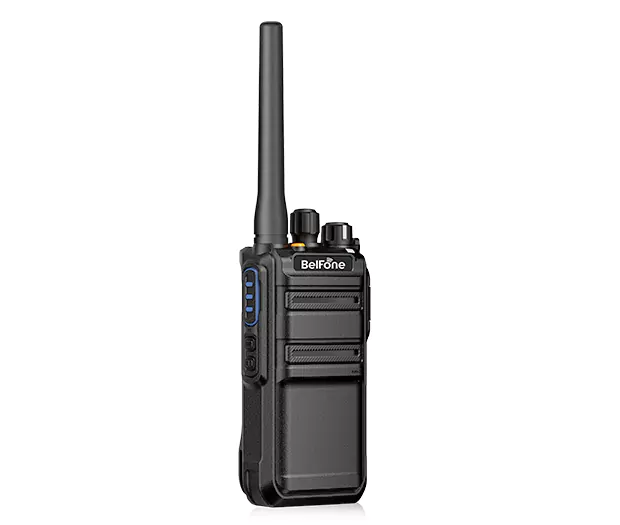

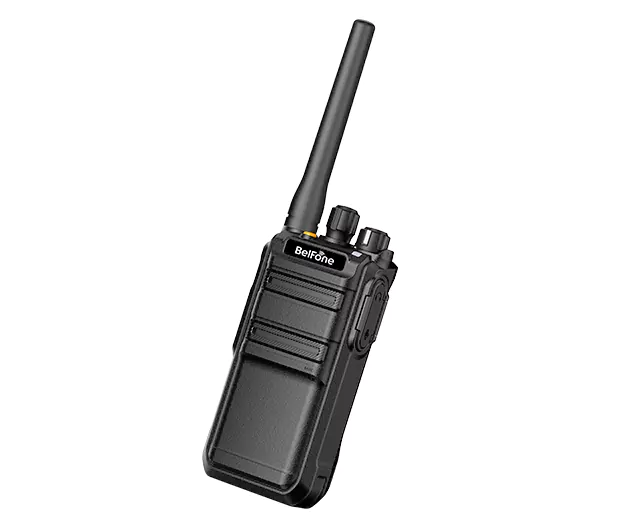

License Free DMR Portable Radio

BF-TD526LF

BF-TD526LF is a license-free DMR radio that seamlessly integrates digital and analog modes, offering cost-effective and reliable communication . Designed for industrial and commercial users, it features a sleek exterior with a distinctive dual-color PTT for enhanced aesthetics and functionality. With robust anti-interference capability, secure communication, and optimized channel bandwidth, BF-TD526LF ensures clear and stable voice transmission over a wide range. Its high efficiency and ease of use make it an ideal choice for various professional and everyday applications.
Brochure
Inquiry
Features & Benefits
Specification
Accessories

Reliable Communication

BF-TD526LF ensures clear and stable communication with optimized transmission efficiency, even in urban environments. With 0.5W transmitting power and an enhanced antenna design , it provides reliable coverage for short to medium distances while maintaining superior audio quality. Whether in workplaces or outdoor activities, BF-TD526LF keeps you connected without interference.


Long Standby

In standby mode, BF-TD526LF will go into auto power save mode to pr olong standby time. Low power alert will remind the user to recharg e the battery with voice prompt, making sure your workers are alway s on line.


IP54 Rating Protect

ABS+PC materials make BF-TD526LF sturdy and durable, while IP54 rating effectively protects it from water and dust. Accidental showers are one less thing to worry about for outdoor users. BF-TD526LF is designed to hold up against challenging environments.


MIC Noise Reduction

BF-TD526LF integrates advanced digital voice codec technology that optimizes audio power output, providing loud, clear, an d penetrating sound. With built-in MIC noise reduction algorithm to filter environmental noise and minimize howling, improving voice clarity.


SOS/Lone Worker

BF-TD526LF offers two alarm modes: one key alarm and lone worker.In case of emergencies, it can automatically send distress signals for help. Equip ped a top-mounted emergency button that activates instantly upon touch, it is responsive and easy to trigger, helping to stay responsive in emergencies.


Digital/Analog Dual Mode

BF-TD526LF is compatible with both digital and analog networks and can autom atically switches between two modes, which delivers a smooth transition from analog to digital. The user can take his time upgrading his analog infrastructures. There is no hurry.


Voice Encryption

BF-TD526LF incorporates advanced digital encryption technologies to protect you r information privacy. The user can select static or dynamic encryptions through the programming software. Only radios with the s ame encryption type can talk with each other.


*Bluetooth (Optional)

The BF-TD526LF incorporates optional Bluetooth functionality, automatic ally pairing and connecting upon startup. Enabling effortless program ming, facilitating simpler and more efficientmanagement.


General
Frequency Range
UHF: 446-446.2MHz
Channel Capacity
32
Zones
2
Channel Spacing
12.5kHz/25kHz
Operating Voltage
DC7.4V (±20%)
Battery Capacity
1800 mAh
Battery Life (5/5/90)
Digital 18 Hours/Analog 13 Hours
Frequency Stability
±1.5ppm
Antenna Impedance
50Ω
Dimensions (L × W × H)
59.7 (L) * 35 (W) * 114 (H) mm
Screen
Weight
242g (Including Battery)
Recording (Optional)
Bluetooth (Optional)
BT5.0
Transmitter
RF Output Power
0.5W
4FSK Modulation
12.5kHz Only data: 7K60FXD; 12.5kHz data and audio: 7K60FXE
FM Modulation
12.5 kHz: 8K50F3E; 25 kHz: 16K0F3E
Modulation Limiting
+/- 2.5kHz @ 12.5kHz; +/- 5kHz @ 25kHz
FM Noise
-40dB
Conducted Emission
-36 dBm ≤ 1GHz / -30 dBm ≥ 1GHz
Adjacent Channel Power
≤ -60dB
Audio Response
+/- 3 dB
Audio Distortion
3%
Digital Voice Coder Type
AMBE
Receiver
Digital Sensitivity
5% BER: 0.25 uV
Analog Sensitivity
0.25 uV (12 dB SINAD)
Intermodulation
65dB
Adjacent Channel Selectivity
60 dB
Spurious Response Rejection
70 dB
FM Noise
-40dB
Audio Response
+/- 3 dB
Rated Audio Output Power
0.5 W
Max Audio Output Power
2W
Rated Audio Distortion
3%
Conducted Spurious Emission
-36dBm
Environmental
Working Temperature
-30℃—+60℃
Storage Temperature
-40℃—+85℃
ESD Protection
Vibration&Shock
MIL-STD-810G
Moistureproof
MIL-STD-810G
Waterproof&Dustproof
IP54
